DLE-85 85cc Gas Engine with Electronic Ignition and Muffler

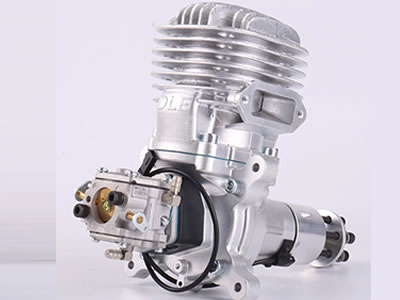

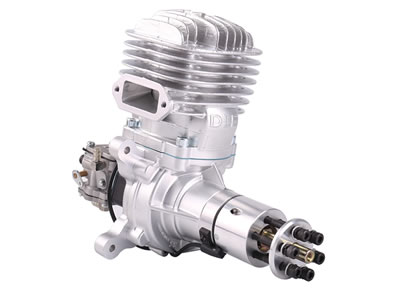

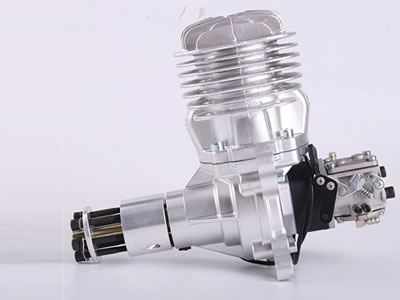

DLE85 Gas Engine
Special price: [ US$1120.00 ]
Shipping Cost: [ US$100.00 ]
Ship to:
Estimated Delivery: 3 to 7 business days
DLE85 Gas Engine For Airplane
1.it can work with all RC airplane
2.please read the manual carefully before order it.
DLE85 Gas Engine Specifications:
it is made in China ,100% original,
Key Features
- Engine mount specifically designed to dampen vibration
- Exhaust extension on the included muffler aids in installation and helps protect the engine and muffler in the event of a hard landing
- Ignition module will accept the optional DLE tachometer
Smooth single-cylinder power
Giant-scale enthusiasts will love the power, performance and value of the DLE-85cc! The engineers at DLE have thought of everything. Vibration — a real concern for many single cylinder engines — is checked by a vibration-dampening engine mount. Plus, an exhaust extension lets the engine fit in more planes without cowl modifications. This extension will flex or pop off during a hard landing, helping to protect the engine.
- The ignition module will accept input voltages from 4.8V to 8.4V.
- Suggested prop sizes: 25 x 10, 26 x 9, 27 x 8
- Includes an engine mount specially designed to dampen vibration
- An exhaust extension on the included muffler aids in installation and helps protect the engine and muffler in the event of a hard landing
You get all this with the DLE-85: ignition module, spark plug, engine standoffs, vibration-dampening engine mount and muffler with exhaust extension.
The DLE-85’s engine mount combats performance-robbing vibration, and unlike comparable engines, is standard equipment.
Product Specifications
| Engine (Only) Weight | 68 oz (1930 g ) |
| Muffler Type | 2-piece aluminum |
| Ignition Weight | 4.58 oz (110g) |
| Muffler Weight | 8.8 oz (250 g) |
| Displacement | 5.18 cu in (84.88 cc) |
| Oil Type & Content | 30:1 2-cycle oil mixture |
| Product Length | 7.87" (200mm) from mount to front of prop hub |
| Bore | 2.05" (52mm) |
| Crankshaft Type | Threaded |
| Power Type | Gas |
| Plug Type | NGK CM6 |
| Stroke | 1.57" (40mm) |
| Cylinders | Single |
| Total Weight | 6.04lbs (2744g) |
| Product Height | 5.51" (140mm) fron center of crankshaft to top of cylinder head |
| Prop Range | 25 x 10 - 27 x 8 |
| Starter Type | Hand Held Starter |

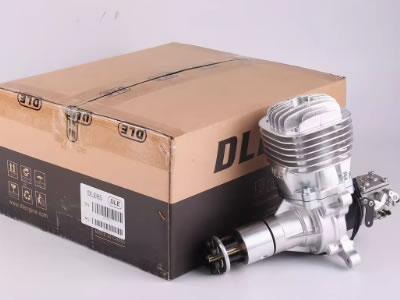

In The Box
- (1) DLE-85 Engine with Ignition Module
- (1) Spark Plug
- Engine Standoffs
- (1) Engine Mount
- (1) Muffler w/Exhaust Extension
- (1) Fiber Muffler Gasket
- (1) Product manual
Needed to Complete
- Unleaded gasoline
- Two-stroke oil
- 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used)
- **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery
- If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
- Propeller
