DLE30 Gas Engine
DLE30 Gas Engine
Special price: [ US$380.00 ]
Shipping Cost: [ US$80.00 ]
Ship to:
Estimated Delivery: 3 to 7 business days

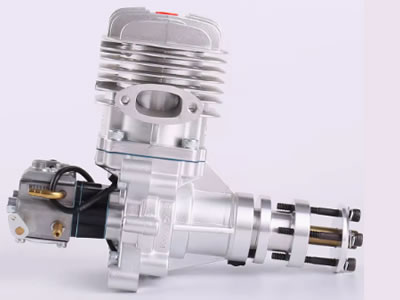

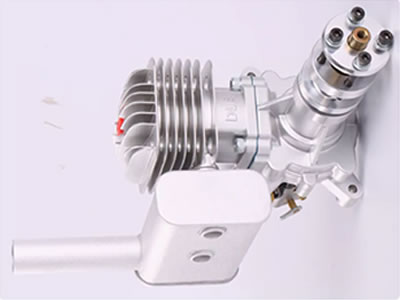

DLE30 Gas Engine For Airplane
1.it can work with all RC airplane
2.please read the manual carefully before order it.
DLE30 Gas Engine Specifications:
it is made in China DLE Engine Co.,Ltd ,100% original,
Specifications
Key Features
- Two sealed bearings on crankshaft-simple design for lighter weight
- Aluminum alloy crankcase
- Rear mounted pumper carburetor ensures easier installation and smooth idling and dependable fuel flow during flights
- Fully automatic electronic ignition Ignition Sensor available separately
A First-Rate Gas Power Plant – For a Low Tower Hobbies Price!
The DLE-30cc Gas Engine gives pilots premium flight performance for an affordable price. Features include a fully automatic electronic ignition unit, a muffler, a rear mounted pumper carb and an aluminum alloy crankcase.
- Simple, lightweight design.
- Advanced CNC machining-processed.
- Aluminum alloy crankcase.
- Fully automatic electronic ignition.
- Purpose-designed cylinder, pistons and crankshaft.
- Sealed dual crankshaft bearings.
- High power-to-weight ratio.
High-quality carb included!
Electronic Ignition Unit included!
Loaded with "extras!" With DLE, accessories are an added value instead of an extra cost. The DLE-30 package includes a muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & manual
Product Specifications
| Cylinders | Single |
| Total Weight | 2.4 lbs (1110g) |
| Bore | 1.42" (36mm) |
| Crankshaft Type | Threaded |
| Power Type | Gas |
| Plug Type | NGK CM6 |
| Stroke | 1.18" (30mm) |
| Displacement | 1.86 cu in (30.5 cc) |
| Oil Type & Content | 30:1 2-cycle oil mixture |
| Product Length | 6.37" (162mm) from end of standoff to prop hub |
| Engine (Only) Weight | 2 lbs (910 g) |
| Muffler Type | Pitts |
| Product Height | 1.33" (110mm) from center of crankshaft to top of cylinder head |
| Prop Range | 18 x 8 - 20 x 8 |
| Starter Type | Hand Held Starter |
| Ignition Weight | 4.2 oz (120 g) |
| Muffler Weight | 2.11 oz (60 g) |
In The Box
- (1) DLE 30cc Gasoline Powered Engine
- (1) Spark plug
- (4) Standoffs
- (1) Ignition
- (1) Muffler
- (1) Muffler gasket
- (2) 5x20mm muffler bolts
- (4) 5x60mm mounting bolts
- (1) Product manual
Needed to Complete
- Gasoline with at least 87 octane rating
- 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
- 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used)
- NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case
- Propeller
- 1/8" gasoline tubing
- Field equipment
