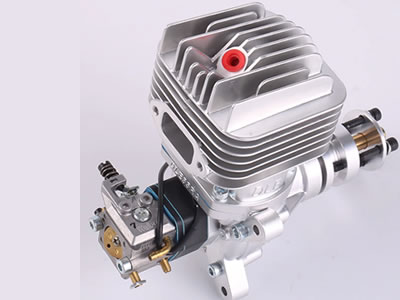

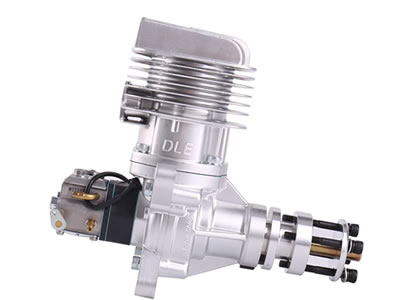

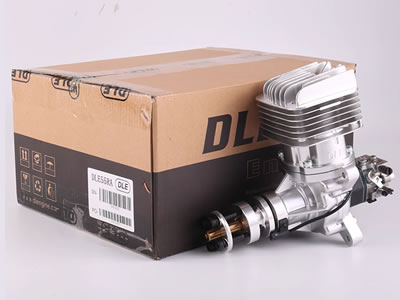

DLE-55RA Gas Rear Exhaust with Electronic Ignition
DLE55RA Gas Engine
Special price: [ US$1165.00 ]
Shipping Cost: [ US$80.00 ]
Ship to:
Estimated Delivery: 3 to 7 business days
DLE55RA Gas Engine For Airplane
1.it can work with all RC airplane
2.please read the manual carefully before order it.
DLE55RA Gas Engine Specifications:
it is made in China DLE Engine Co.,Ltd ,100% original,
Key Features
- High performance in a compact package
- Rear exhaust for the perfect tuned pipe setup
- Pitts style aluminum muffler
- Piston with re-engineered skirt for less piston weight resulting in such advantages as awesome throttle response, more power and longer engine life
- Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise, **Ignition Sensor available separately**
- Producing 100 more rpm than the DLE50, the DLE 55-RA comes with engine standoffs, electronic ignition, spark plug and muffler
More power!
DLE takes 50cc performance to a new level with the rear exhaust DLE-55RA. Everything about this engine screams performance, from the piston skirt – designed to be lightweight for quick throttle response and tons of power – to the rear exhaust that lets you easily install a tuned pipe in your aircraft. The 55RA provides 100 more rpm than the standard DLE55. It includes engines standoffs, electronic ignition, spark plug and Pitts style muffler.
With DLE, accessories are an added value instead of an extra cost.
Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.
Product Specifications
| Displacement | 3.39 cu in (55.6cc) |
| Oil Type & Content | 30:1 2-cycle oil mixture |
| Product Length | 6.7" (171mm) from standoff to prop hub |
| Total Weight | 3.4lbs (1565g) |
| Bore | 1.76" (45mm) |
| Crankshaft Type | Threaded |
| Power Type | Gas |
| Plug Type | NGK CM6 |
| Stroke | 1.37" (35mm) |
| Engine (Only) Weight | 3.74 lbs (1.33 kg) |
| Muffler Type | Pitts |
| Ignition Weight | 5.11 oz (145 g) |
| Muffler Weight | 3.17 oz (90 g) |
| Cylinders | Single |
| Product Width | 3.54" (90mm) between center of mounting holes |
| Product Height | 4.92" (125mm) from center of crankshaft to top of cylinder head |
| Prop Range | 22 x 8 - 23 x 10 |
| Starter Type | Hand Held Starter |
In The Box
- (1) DLE 55-RA Gasoline Engine
- (1) Electronic Ignition
- (1) Pitts Muffler
- (1) DLE CM6 Spark Plug
- (4) Engine Standoffs with Mounting Hardware
- (1) Integrated Choke Rod Guide
- (1) Rear-mounted Carb
- (1) Product manual
Needed to Complete
- Gasoline with at least 87 octane rating
- 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
- 4.8 - 12V battery for ignition (separate receiver style pack can be used)
- **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
- Propeller and field equipment
